WIRE & CABLE BRAIDING

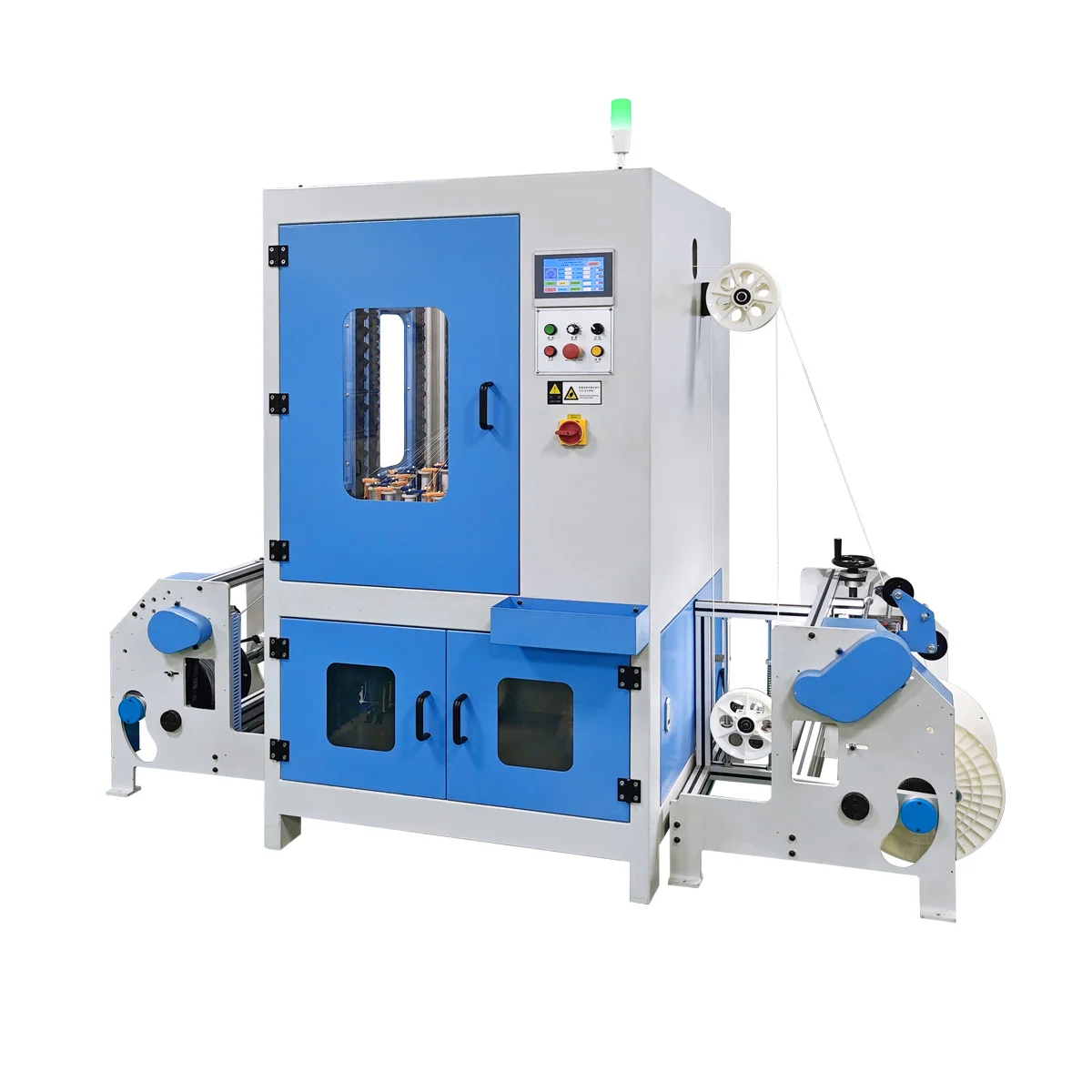

Wire & Cable Braiding Machines
Braiding machines for cable shielding, protective overbraiding and larger cable structures. Select the machine series from your finished-product requirements.
MACHINE FAMILIES
Select the Machine Series
B Series supports standard wire and cable braiding applications. C Series provides additional configuration options for products that require a different machine layout or larger processing range.
STANDARD CABLE SHIELDING
B Series
Oil-free braiding machines for standard cable shielding and protective overbraiding with metal wire or synthetic fibre.
- Models: GB-16B01D / GB-24B01D
- Carriers: 16 / 24
- Braiding diameter: up to 10 / 15 mm by model
- Braid materials: metal wire or synthetic fibre
VERTICAL AND HORIZONTAL CONFIGURATIONS
C Series
Vertical and horizontal braiding machine configurations for heavy-duty cable shielding, conductive braid products and larger cable structures.
- Vertical and horizontal configurations
- Machine and carrier arrangement selected by application
- Pay-off and take-up reviewed with the complete line
TECHNICAL REVIEW
Send Us Your Product Specification
Share the finished-product requirements with our engineering team. We will review the suitable machine series and configuration for your application.
Please include:
- Finished product or cable structure
- Braiding diameter
- Braid material and wire/yarn size
- Required coverage or braid pitch
- Drawing, sample photo or existing product reference
Target speed, carrier count and pay-off/take-up requirements can be reviewed during the technical discussion.
